Drivelock® 13 Bushes are self centering, offer high torques 350 to 46900 Nm and are available in bores from 18 to 180mm

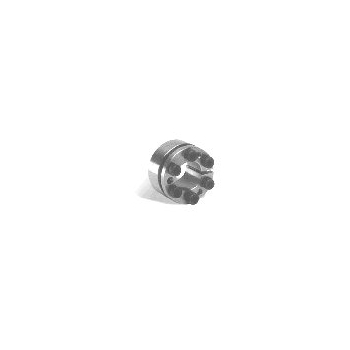

Drivelock 13 22x47 mm (DL13/22)
Drivelock 13 22x47 mm (DL13/22)
Part No. | 7930-107 |
Code | DL13/22 |
d (h8) (mm) | 22 |
D (mm) | 47 |
M (screws)(mm) | M6 |
L (mm) | 34 |
B (mm) | 28 |
Ts (Nm) | 14 |
T(Nm) | 400 |
F (kN) | 38 |
p (N/mm2) | 123 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
