Drivelock® 11 Bushes are self centering, offer very high torques 784 to 419860 Nm and are available in bores from 25 to 300mm

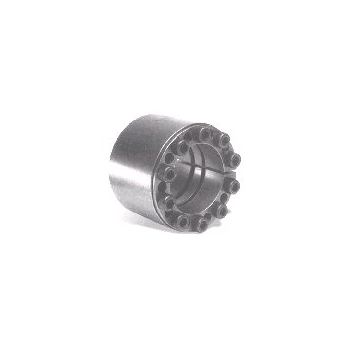

Drivelock 11 95x135mm (DL11/95)
Drivelock 11 95x135mm (DL11/95)
| Part No. | 7930-031 |
| Code. | DL11/95 |
| d (h8) (mm) | 95 |
| D (mm) | 135 |
| M (mm) | M10 |
| L (mm) | 88 |
| B (mm) | 78 |
| Ts Nm | 83 |
| T Nm | 18338 |
| F kN | 382 |
| p N/mm2 | 112 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
