Metric Spur Gears in moulded Delrin® 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN® 500. to gear quality AGMA 7. 20° P.A

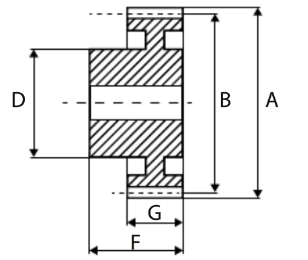

Delrin Moulded Spur Mod 1.0 18T, With Hub (DS10/18B)
Delrin Moulded Spur Mod 1.0 18T, With Hub (DS10/18B)
| Part No. | 7701-347 |
| Code | DS10/18B |
| No. of Teeth | 18 |
| Pitch Ø B | 18 |
| Bore Ø H9 | 5 |
| Hub/Boss Ø D | 10 |
| Outside Ø A | 20 |
| O/A Width F | 12 |
| Face Width G | 6 |
