Metric Spur Gears in moulded Delrin® 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN® 500. to gear quality AGMA 7. 20° P.A
Delrin Moulded Spur Mod 0.8 35T, With Hub (DS08/35B)
Delrin Moulded Spur Mod 0.8 35T, With Hub (DS08/35B)

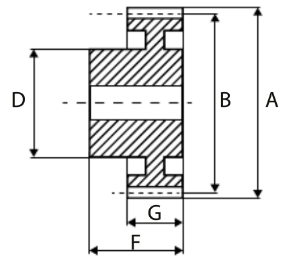

| Part No. | 7701-333 |
| Code | DS08/35B |
| No. of Teeth | 35 |
| Pitch Ø B | 28 |
| Bore Ø H9 | 6 |
| Hub/Boss Ø D | 12 |
| Outside Ø A | 29.6 |
| O/A Width F | 9 |
| Face Width G | 4 |
