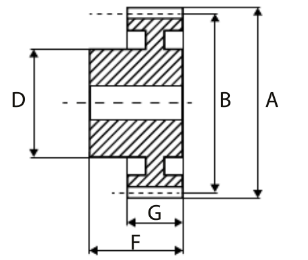

Metric Spur Gears in moulded Delrin® 500. . Standard tolerances, unless. otherwise stated ±0.25mm. All dimensions in mm. Moulded DELRIN® 500. to gear quality AGMA 7. 20° P.A
Delrin Moulded Spur Mod 0.5 28T, With Hub (DS05/28B)
Delrin Moulded Spur Mod 0.5 28T, With Hub (DS05/28B)
| Part No. | 7701-308 |
| Code | DS05/28B |
| No. of Teeth | 28 |
| Pitch Ø B | 14 |
| Bore Ø H9 | 4 |
| Hub/Boss Ø D | 8 |
| Outside Ø A | 15 |
| O/A Width F | 7 |
| Face Width G | 3 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
