En8 zinc plated steel double split Shaft Collars in metric Bore. Type CADB supplied with setscrew(s).
Collar 18x36x13mm BZP Double Split (CADB18Z)
Collar 18x36x13mm BZP Double Split (CADB18Z)

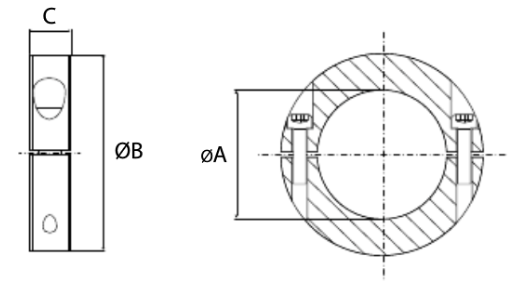

| Part No. | 7932-514 |
| Code | CADB18Z |
| Bore A (mm) | 18 |
| Diameter B (mm) | 36 |
| Width C (mm) | 13 |
| Clamp Bolts | M5X16 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
