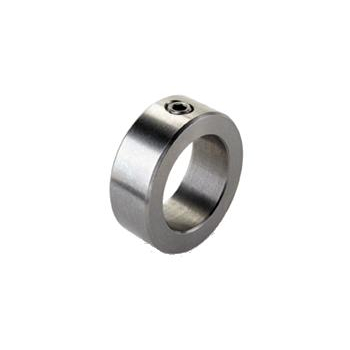

En8 zinc plated steel unsplit Shaft Collars in imperial Bore. Type CABUI supplied with setscrew(s).
Collar 1.75x2.625x1.0 inches BZP (CABUI1.75Z)
Collar 1.75x2.625x1.0 inches BZP (CABUI1.75Z)
| Part No. | 7932-416 |
| Code | CABUI1.75Z |

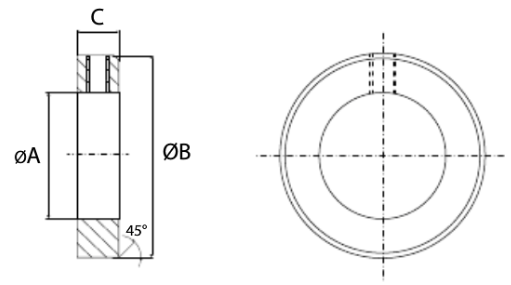

| Bore A (inch) | 1.75 |
| Diameter B (inch) | 2.625 |
| Width C (inch) | 1 |
| Setscrew | 7/16 BSW or1/2-13 UNC |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
