Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.

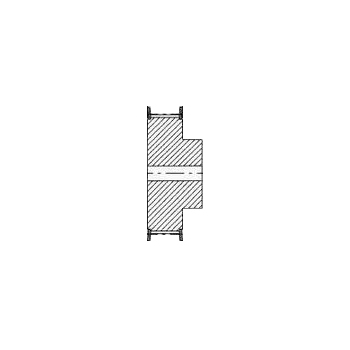

Aluminium Pulley 26T XL037 (P26XL037F)
Aluminium Pulley 26T XL037 (P26XL037F)
| Part No. | 7801-227 |
| Material | P26XL037F |
| Code(Aluminium) | P26XL037F |
| Type | 1F |
| No. Teeth | 26 |
| Dp | 42 |
| De | 42 |
| Df | 48 |
| Dm | 30 |
| F | 14.3 |
| L | 22 |
| Bore(d) | 6 |
| No. Flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
