Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.
Aluminium Pulley 20T XL037 (P20XL037F)
Aluminium Pulley 20T XL037 (P20XL037F)
| Part No. | 7801-219 |
| Material | P20XL037F |
| Code(Aluminium) | P20XL037F |

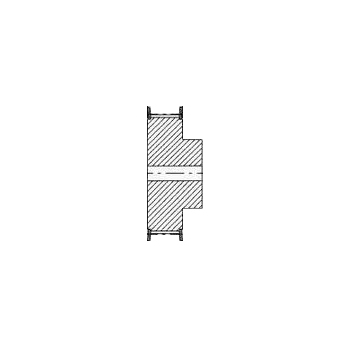

| Type | 1F |
| No. Teeth | 20 |
| Dp | 32 |
| De | 32 |
| Df | 38 |
| Dm | 24 |
| F | 14.3 |
| L | 22 |
| Bore(d) | |
| No. Flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
