Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN® 1:1 Ratio

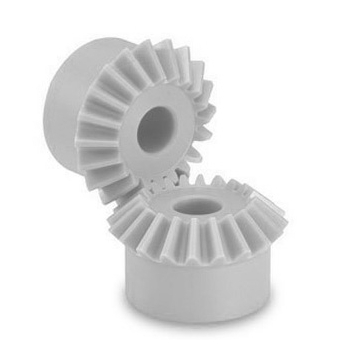

Acetal Mitre Gear Mod 4 1:1 16T/16T (DBM40/16), comes with 5mm wide keyway in bore

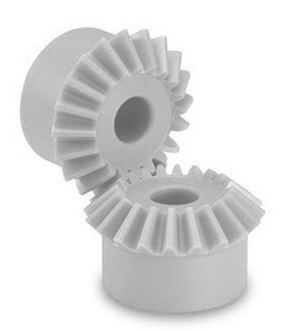

Acetal Mitre Gear Mod 4 1:1 16T/16T (DBM40/16), comes with 5mm wide keyway in bore
| Part No. | 7708-610 |
| Code | DBM40/16 |
| Pitch Module | 4 |
| No. Teeth | 16 |
| dp (mm) | 64 |
| de (mm) | 69.6 |
| dm (mm) | 50 |
| Bore H8 | 15 |
| F (mm) | 15 |
| Lm (mm) | 16.49 |
| A (mm) | 35.81 |
| V+A (mm) | 55.5 |
| S (mm) | 0 |
