Standard tolerances, unless otherwise stated ±0.25 mm. Shaft axis to intersect within ±0.025mm. Angular accuracy between shafts ±5mins. Mounting distance tolerance ±0.05mm. Bore tolerance H8. Max. recommended working. temperature 90°C. Cut to the Gleason System. 20° pressure angle. Supplied in pairs. All dimensions in mm. Acetal/DELRIN® 1:1 Ratio

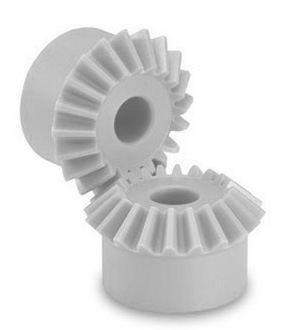

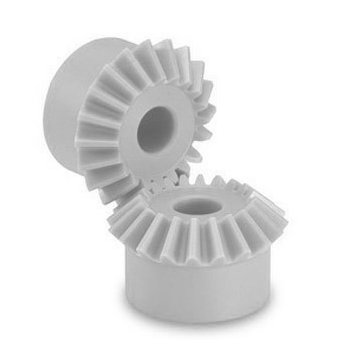

Acetal Mitre Gear Mod 1 1:1 30T/30T (DBM10/30)
Acetal Mitre Gear Mod 1 1:1 30T/30T (DBM10/30)
| Part No. | 7708-607 |
| Code | DBM10/30 |
| Pitch Module | 1 |
| No. Teeth | 30 |
| dp (mm) | 30 |
| de (mm) | 31.4 |
| dm (mm) | 20.3 |
| Bore H8 | 5 |
| F (mm) | 6.4 |
| Lm (mm) | 8 |
| A (mm) | 16 |
| V+A (mm) | 26 |
| S (mm) | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
