Standards: to DIN 867, 3962, 3963, Grade/Quality 9 or equivalent. Standard tolerances, unless otherwise stated ±0.25mm. All dimensions in mm. Acetal/DELRIN® racks teeth machined

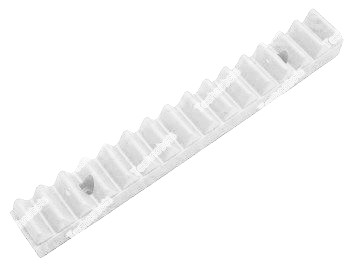

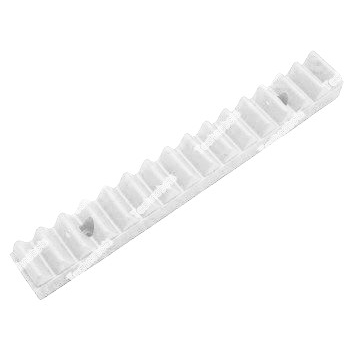

Acetal/Delrin Mod 3.0 30x30mmx1m Plastic Rack (DR30/30/1)
Acetal/Delrin Mod 3.0 30x30mmx1m Plastic Rack (DR30/30/1)
| Part No. | 7700-131 |
| Code | DR30/30/1 |
| Pitch module | 3 |
| Width B | 30 |
| Overall height A | 30 |
| Height to pitch line hp | 27 |
| Length L | 1000 |
