British Standard sprockets with integral bearings (INA) for use as an idler.

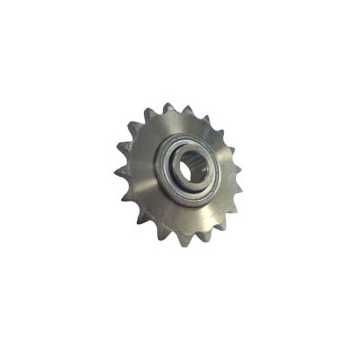

8B 18T Idler Sprocket INA Bearing (I4SR18I)
8B 18T Idler Sprocket INA Bearing (I4SR18I)
Part No. | 7830-206 |
Code | I4SR18I |
No. teeth | 18 |
Pitch | 1/2? x 5/16? |
de | 77.8 |
dp | 73.14 |
A | 7.2 |
D1* | 16 |
F | 40 |
B | 12 |
H | 18.3 |
Bearing | INA |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
