British Standard sprockets with integral bearings (budget) for use as an idler.

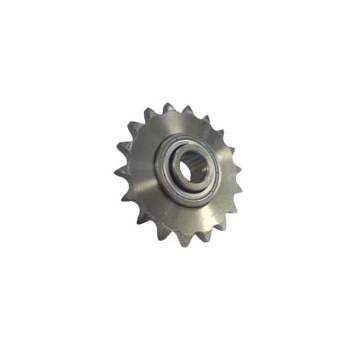

6B 22T Idler Sprocket Budget Bearing (I3SR22B)
6B 22T Idler Sprocket Budget Bearing (I3SR22B)
| Part No. | 7830-105 |
| Code | I3SR22B |
| No. teeth | 22 |
| Pitch | 3/8? x 7/32? |
| de | 71 |
| dp | 66.93 |
| A | 5.3 |
| D1* | 16 |
| F | 40 |
| B | 12 |
| H | 18.3 |
| Bearing | Budget |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
