5050 size taper bushes for use with our matching taper bore pulleys, hubs and sprockets.
5050 x 3 1/2" taper bush (505031/2)
5050 x 3 1/2" taper bush (505031/2)

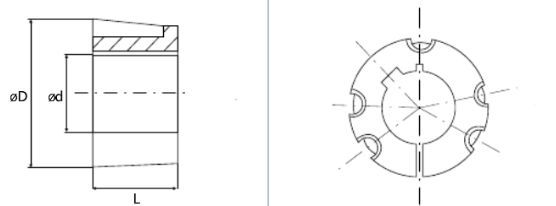

| Part No. | 7935-714 |
| Code | 505031/2 |
| Size | 5050 |
| Type | B |
| L(mm) | 127 |
| Ø D | 177.6 |
| Ø d | 3 1/2" |
| Grubscrew / Caphead Size (BSW) | 7/8x 2 1/4 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
