Triplex 1 1/4" (20B) British Standard pitch sprocket. Manufactured in cast iron.
20B-3 57T Cast Iron Sprocket (10TR57C)
20B-3 57T Cast Iron Sprocket (10TR57C)

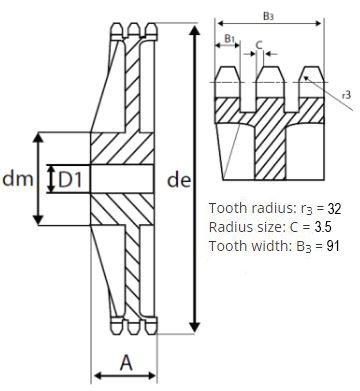

| Part No. | 7827-211 |
| Code | 10TR57C |
| No. teeth | 57 |
| Outside dia. de | 591.5 |
| Pitch dia. dp | 576.36 |
| Boss dia. | 180 |
| Bore D1* | 60 |
| Overall Width A | 125 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
