Duplex 1 1/4" (20B) British Standard pitch sprocket. Manufactured in Steel EN8, 080M40/080M46, C45
20B-2 13T Duplex Steel Sprocket (10DR13)
20B-2 13T Duplex Steel Sprocket (10DR13)

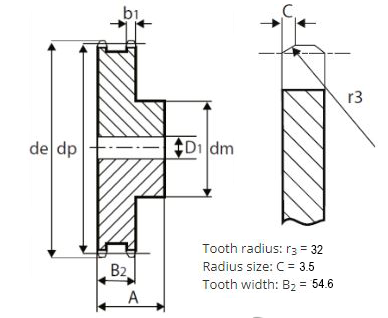

| Part No. | 7827-003 |
| Code | 10DR13 |
| No. teeth | 13 |
| Outside dia. de | 147.8 |
| Pitch dia. dp | 132.65 |
| Boss dia. | 100 |
| Bore D1* | 20 |
| Overall Width A | 80 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
