These sprockets are designed for running two simplex chains typically 1 sprocket driving two separate sprockets or roller to roller drives in conveyor systems. Available in sizes from 06B to 16B, manufactured in steel EN8, 080M40/080M46, C45.

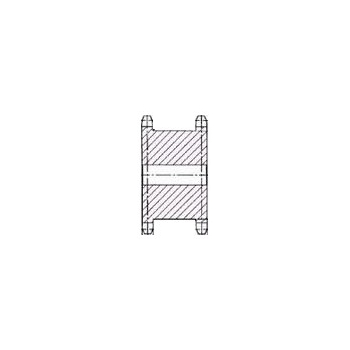

16B 25T Double Simplex Sprocket (8DS25)
16B 25T Double Simplex Sprocket (8DS25)
Part No. | 7826-007 |
Code | 8DS25 |
Type | 1 x 17,02 16 B-1 |
No teeth | 25 |
Outside dia. de | 213.78 |
Pitch dia. dp | 202.7 |
d* | 24 |
A | 48 |
B h14 | 16.2 |
C max. | 176 |
L | 64 |
r | 1 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
