Duplex 1" (16B) taper bore British Standard pitch sprocket for use with our taper bushes. Manufactured in cast iron.
16B-2 57T Duplex Cast Iron Sprocket For 3525 T/L Bush (82-57C)
16B-2 57T Duplex Cast Iron Sprocket For 3525 T/L Bush (82-57C)

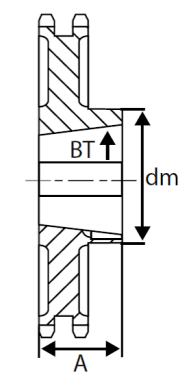

| Part No. | 7826-169 |
| Code | 82-57C |
| No. teeth | 57 |
| Bush type BT | 3525 |
| Type | 7 |
| Hub dia. dm | 175 |
| Overall Width A | 89 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
