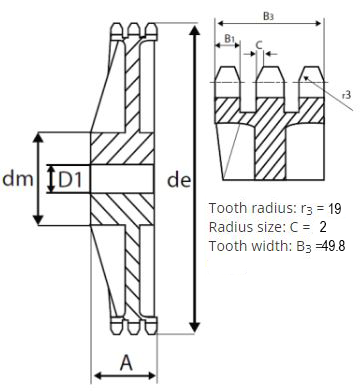

Triplex 3/4" (12B) British Standard pitch sprocket. Manufactured in cast iron.
12B-3 76T Cast Iron Sprocket (6TR76C)
12B-3 76T Cast Iron Sprocket (6TR76C)
| Part No. | 7825-621 |
| Code | 6TR76C |
| No. teeth | 76 |
| Outside dia. de | 469.9 |
| Pitch dia. dp | 460.99 |
| Boss dia. | 160 |
| Bore D1* | 39 |
| Overall Width A | 75 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
