Duplex 3/4" (12B) British Standard pitch platewheel sprocket. Manufactured in Steel EN8, 080M40/080M46, C45

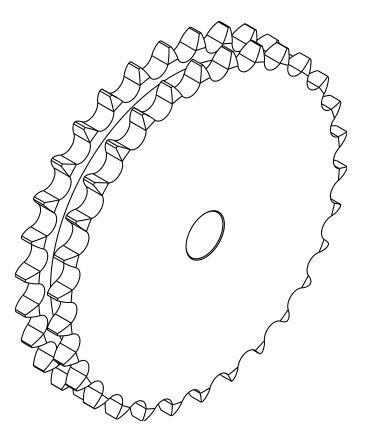

12B-2 19T Duplex Steel Platewheel (6DR19P)
12B-2 19T Duplex Steel Platewheel (6DR19P)

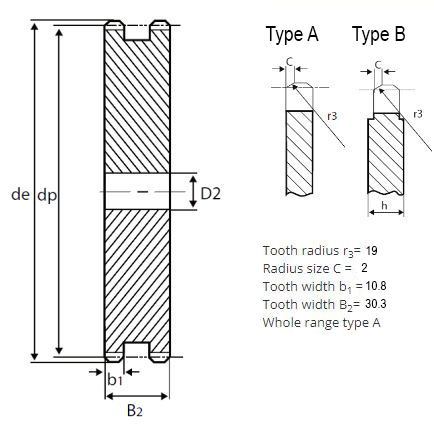

| Part No. | 7825-112 |
| Code | 6DR19P |
| No. Teeth | 19 |
| Outside dia. de | 124.2 |
| Pitch dia. Dp | 115.75 |
| Dulex D2 | 20 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
