1215 size taper bushes for use with our matching taper bore pulleys, hubs and sprockets.
1215 x 19 mm taper bush (121519)
1215 x 19 mm taper bush (121519)

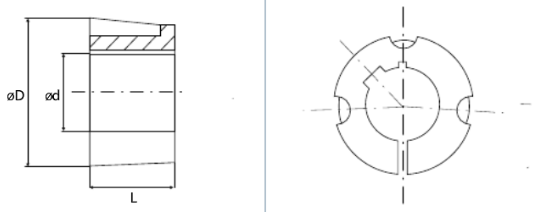

| Part No. | 7934-405 |
| Code | 121519 |
| Size | 1215 |
| Type | A |
| L(mm) | 38 |
| Ø D | 47.5 |
| Ø d | 19 |
| Grubscrew / Caphead Size (BSW) | 3/8x 5/8 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
