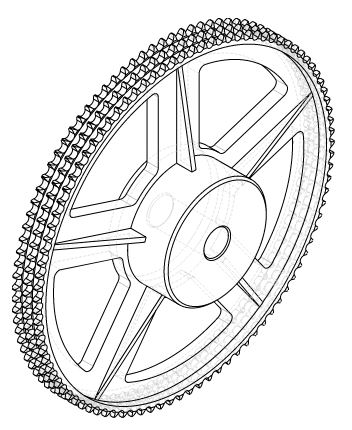

Triplex 5/8" (10B) British Standard pitch sprocket. Manufactured in cast iron.
10B-3 45T Cast Iron Triplex Sprocket (5TR45C)
10B-3 45T Cast Iron Triplex Sprocket (5TR45C)

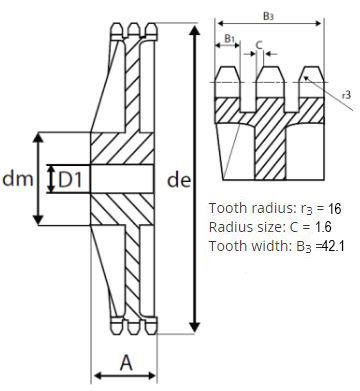

| Part No. | 7824-524 |
| Code | 5TR45C |
| No. teeth | 45 |
| Outside dia. de | 235 |
| Pitch dia. dp | 227.58 |
| Boss dia. | 100 |
| Bore D1* | 31 |
| Overall Width A | 60 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
