Duplex 5/8" (10B) British Standard pitch sprocket. Manufactured in cast iron.
10B-2 57T Duplex Cast Iron Sprocket (5DR57C)
10B-2 57T Duplex Cast Iron Sprocket (5DR57C)

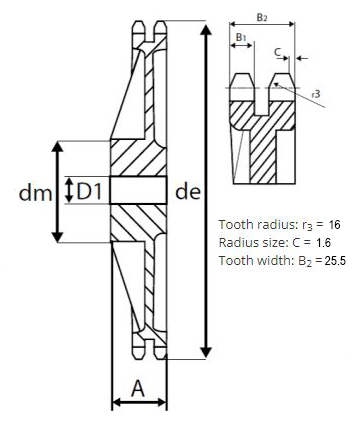

| Part No. | 7824-137 |
| Code | 5DR57C |
| No. teeth | 57 |
| Outside dia. de | 296 |
| Pitch dia. dp | 288.18 |
| Boss dia. | 100 |
| Bore D1* | 29 |
| Overall Width A | 56 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
