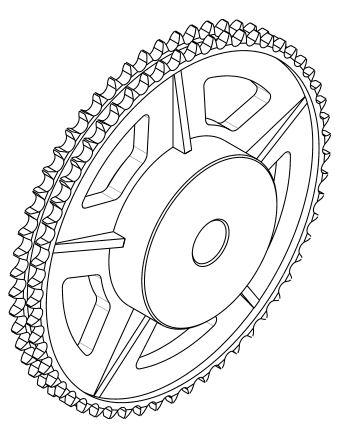

Duplex 5/8" (10B) British Standard pitch sprocket. Manufactured in cast iron.

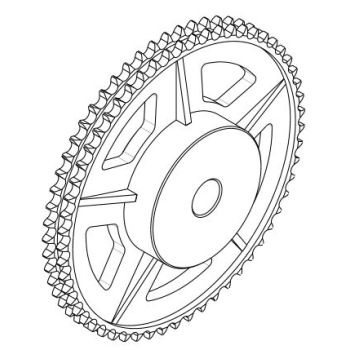

10B-2 114T Duplex Cast Iron Sprocket (5DR114C)
10B-2 114T Duplex Cast Iron Sprocket (5DR114C)
| Part No. | 7824-159 |
| Code | 5DR114C |
| No. teeth | *114 |
| Outside dia. de | 584.1 |
| Pitch dia. dp | 576.13 |
| Boss dia. | 125 |
| Bore D1* | 29 |
| Overall Width A | 70 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
