These sprockets are designed for running two simplex chains typically 1 sprocket driving two separate sprockets or roller to roller drives in conveyor systems. Available in sizes from 06B to 16B, manufactured in steel EN8, 080M40/080M46, C45.
10B 13T Double Simplex Sprocket (5DS13)
10B 13T Double Simplex Sprocket (5DS13)

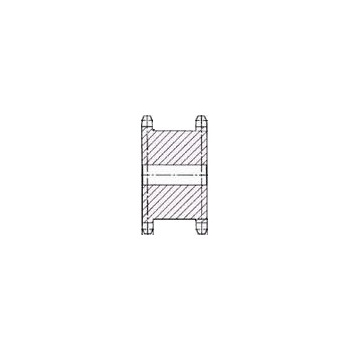

Part No. | 7824-001 |
Code | 5DS13 |
Type | 5/8 x 3/8 10 B-1 |
No teeth | 13 |
Outside dia. de | 73.17 |
Pitch dia. dp | 66.33 |
d* | 15 |
A | 28 |
B h14 | 9.1 |
C max. | 48 |
L | 37 |
r | 1 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
