These sprockets are designed for running two simplex chains typically 1 sprocket driving two separate sprockets or roller to roller drives in conveyor systems. Available in sizes from 06B to 16B, manufactured in steel EN8, 080M40/080M46, C45.
08B 13T Double Simplex Sprocket (4DS13)
08B 13T Double Simplex Sprocket (4DS13)

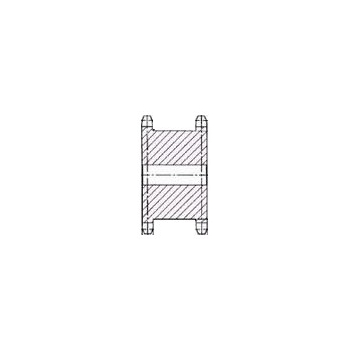

Part No. | 7823-001 |
Code | 4DS13 |
Type | 1/2 x 5/16 08 B-1 |
No teeth | 13 |
Outside dia. de | 57.56 |
Pitch dia. dp | 53.07 |
d* | 12 |
A | 25 |
B h14 | 7.2 |
C max. | 37 |
L | 32 |
r | 1 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
