British Standard sprockets with integral bearings (budget) for use as an idler.

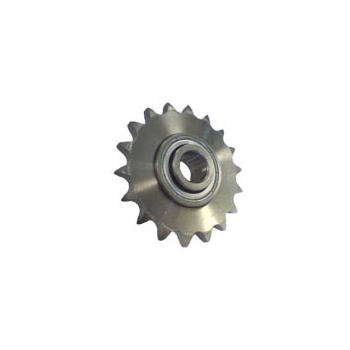

2SR 18T Idler Sprocket Budget Bearing (I2SR18B)
2SR 18T Idler Sprocket Budget Bearing (I2SR18B)
Part No. | 7830-103 |
Code | I2SR18B |
No. teeth | 18 |
Pitch | 1/2? x 3/16? |
de | 78.9 |
dp | 73.13 |
A | 4.5 |
D1* | 16 |
F | 40 |
B | 12 |
H | 18.3 |
Bearing | Budget |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
