Duplex 3/8" (06B) taper bore British Standard pitch sprocket for use with our taper bushes. Manufactured in Steel EN8, 080M40/080M46, C45
06B-2 57T Duplex Steel Sprocket For 1610 T/L Bush (32-57)
06B-2 57T Duplex Steel Sprocket For 1610 T/L Bush (32-57)
| Part No. | 7822-217 |
| Code | 32-57 |
| No. teeth | 57 |
| Bush type BT | 1610 |

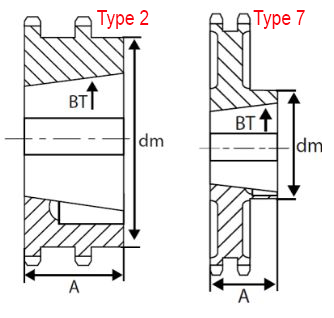

| Type | 7 |
| Hub dia. dm | 89 |
| Overall Width A | 25 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
