Duplex 3/8" (06B) taper bore British Standard pitch sprocket for use with our taper bushes. Manufactured in cast iron.
06B-2 57T Duplex Cast Iron Sprocket For 1610 T/L Bush (32-57C)
06B-2 57T Duplex Cast Iron Sprocket For 1610 T/L Bush (32-57C)
| Part No. | 7822-218 |
| Code | 32-57C |
| No. teeth | 57 |
| Bush type BT | 1610 |

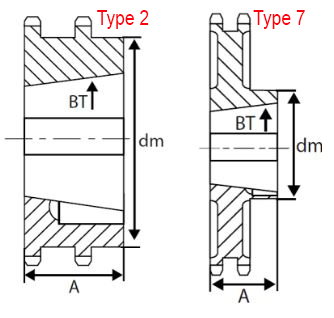

| Type | 7 |
| Hub dia. dm | 89 |
| Overall Width A | 25 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
