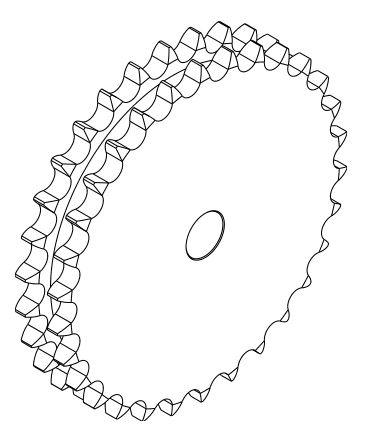

Duplex 3/8" (06B) British Standard pitch platewheel sprocket. Manufactured in Steel EN8, 080M40/080M46, C45
06B-2 40T Duplex Steel Platewheel (3DR40P)
06B-2 40T Duplex Steel Platewheel (3DR40P)
| Part No. | 7822-133 |
| Code | 3DR40P |
| No. Teeth | 40 |

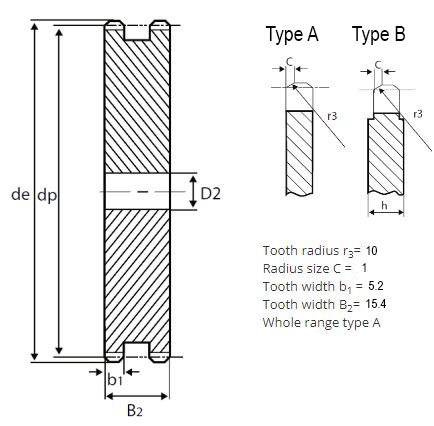

| Outside dia. de | 125.5 |
| Pitch dia. Dp | 121.4 |
| Dulex D2 | 14 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
