These sprockets are designed for running two simplex chains typically 1 sprocket driving two separate sprockets or roller to roller drives in conveyor systems. Available in sizes from 06B to 16B, manufactured in steel EN8, 080M40/080M46, C45.

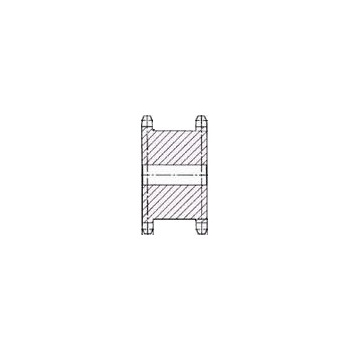

06B 15T Double Simplex Sprocket (3DS15)
06B 15T Double Simplex Sprocket (3DS15)
Part No. | 7822-002 |
Code | 3DS15 |
Type | 3/8 x 7/32 06B |
No teeth | 15 |
Outside dia. de | 49.46 |
Pitch dia. dp | 45.81 |
d* | 10 |
A | 20 |
B h14 | 5.3 |
C max. | 34 |
L | 26 |
r | 0 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
