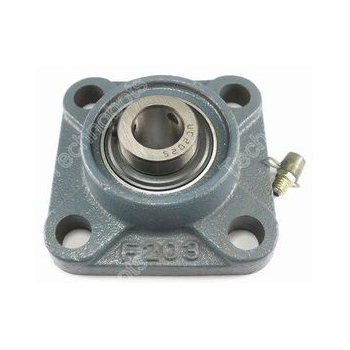

Cast iron square flange bearing housing complete with steel bearing insert
UCF 209 45mm, 4-Bolt Square Flange Bearing (UCF/209)
UCF 209 45mm, 4-Bolt Square Flange Bearing (UCF/209)
| Part Number | 7910-008 |
| Code | UCF/209 |
| UCF | 209 |
| Bore (mm) | 45 |
| l | 137 |
| r | 105 |
| v | 22 |
| e | 16 |
| t | 38 |
| F | 16 |
| m | 52.2 |
| A | 49.2 |
| w | 19 |
| Bearing No. | UC209 |
| Bolt size | M14 |
| Housing No. | F209 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
