Timing Pulleys XL037 (0.200" / 5.08mm pitch) for 9.53mm (3/8") wide belt. Centre drilled or Pilot Bore in Aluminium with Zinc plated Steel Flanges or Phosphated Steel.
Steel Pulley 24T XL037 (P24XL037FST)
Steel Pulley 24T XL037 (P24XL037FST)
| Part No. | 7801-226 |
| Material | P24XL037FST |
| Code(Aluminium) | P24XL037FST |

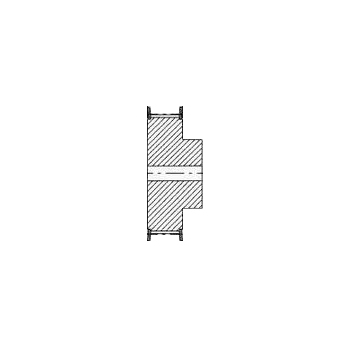

| Type | 1F |
| No. Teeth | 24 |
| Dp | 39 |
| De | 38 |
| Df | 44 |
| Dm | 30 |
| F | 14.3 |
| L | 22 |
| Bore(d) | 6 |
| No. Flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
