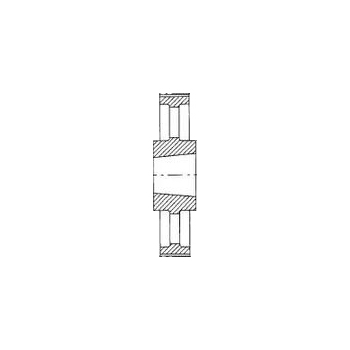

Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 96H100/7A For 2517 T/L Bush (T96H100)
Pulley 96H100/7A For 2517 T/L Bush (T96H100)
| Part No. | 7800-979 |
| Code | T96H100 |
| Material | Cast Iron |
| Type | 4 |
| No.teeth | 96 |
| Bush | 2517 |
| Dp | 388.08 |
| De | 386.71 |
| Df | |
| Dm | 119 |
| Di | 366 |
| F | 34 |
| S | 45 |
| R | 5.5 |
| No. flanges | |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
