Timing Pulleys H100 (0.5" / 12.7mm pitch) for 25.4mm (1") wide belt. Taper bore for use with our taper bushes. Manufactured in steel or Cast Iron with steel flanges.
Pulley 16H100/5F For 1108 T/L Bush (T16H100F)
Pulley 16H100/5F For 1108 T/L Bush (T16H100F)
| Part No. | 7800-901 |
| Code | T16H100F |
| Material | Steel |

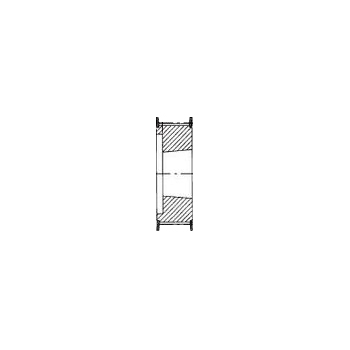

| Type | 9F |
| No.teeth | 16 |
| Bush | 1108 |
| Dp | 64.68 |
| De | 63.31 |
| Df | 70 |
| Dm | |
| Di | 45 |
| F | 31 |
| S | 22 |
| R | 9 |
| No. flanges | 2 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
