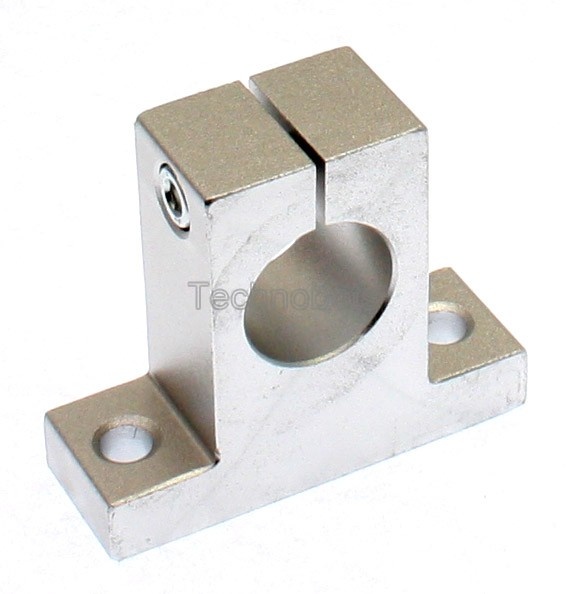

A pillow style aluminium mount for round guide rails of 20mm diameter as typically used for CNC linear bearings.

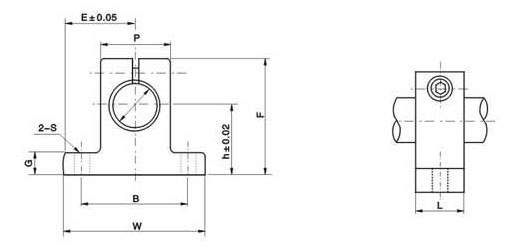

See image for the dimensions drawing:
- Shaft Diameter: 20mm
- h: 31mm
- E: 30mm
- W: 60mm
- L: 20mm
- F: 51mm
- G: 10mm
- P: 30mm
- B: 45mm
- S: 6.6mm
- Clamp Bolt: M5
- Mounting Bolt (not included): M6
