Drivelock® 50 Bushes are not self centering, small radial dimensions, can be stacked up to 4 to increase torque, offer low torques 2.4 to 860 Nm and are available in bores from 6 to 60mm

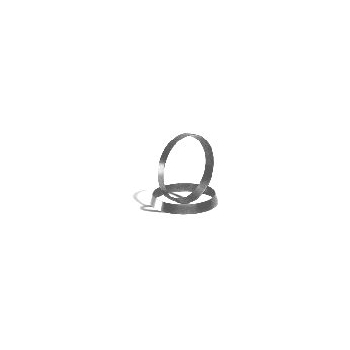

Drivelock 50 70x79mm (DL50/70)
Drivelock 50 70x79mm (DL50/70)
| Part No. | 7930-722 |
| Code | DL50/70 |
| d (mm) | 70 |
| D (mm) | 79 |
| L (mm) | 14 |
| T | 1300 |
| F (Nm) | 37.1 |
| P N/mm2 | 110 |
| Fa kN | 200 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
