Drivelock® 40 Bushes are self centering, offer high torques 290 to 66800 Nm and are available in bores from 19 to 220mm
Drivelock 40 80x120 mm (DL40/80)
Drivelock 40 80x120 mm (DL40/80)

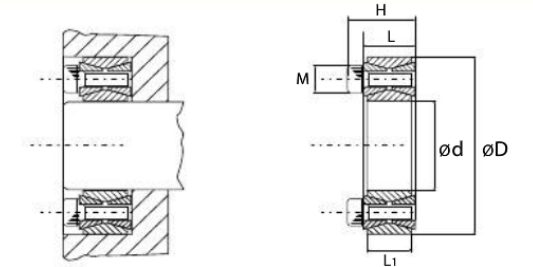

| Part No. | 7930-533 |
| Code | DL40/80 |
| d (h8) (mm) | 80 |
| D (mm) | 120 |
| L1 (mm) | 24 |
| L (mm) | 28 |
| M (screws) | 40 |
| H(mm) | M10 |
| Ts Nm | 70 |
| T (Nm) | 5130 |
| F (kN) | 130 |
| p N/mm2 | 120 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
