Drivelock® 40 Bushes are self centering, offer high torques 290 to 66800 Nm and are available in bores from 19 to 220mm

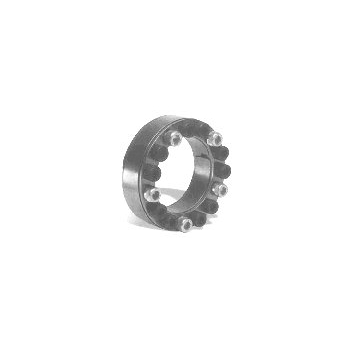

Drivelock 40 22x47mm (DL40/22)
Drivelock 40 22x47mm (DL40/22)
Part No. | 7930-514 |
Code | DL40/22 |
d (h8) (mm) | 22 |
D (mm) | 47 |
L1 (mm) | 17 |
L (mm) | 20 |
M (screws) | 28 |
H(mm) | M6 |
Ts Nm | 15 |
T (Nm) | 320 |
F (kN) | 26 |
p N/mm2 | 89 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
