Drivelock® 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mm

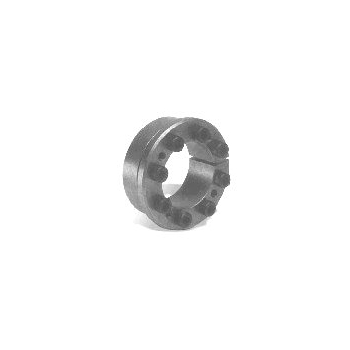

Drivelock 16 60x90 mm (DL16/60)
Drivelock 16 60x90 mm (DL16/60)
| Part No. | 7930-321 |
| Code | DL16/60 |
| d (h8) (mm) | 60 |
| D (mm) | 90 |
| D1 (mm) | 99 |
| M (mm) | M8 |
| L (mm) | 41 |
| B (mm) | 33 |
| A (mm) | 25 |
| Ts (Nm) | 41 |
| T (Nm) | 2648 |
| F (kN) | 86 |
| p N/mm2 | 122 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
