Drivelock® 15 Bushes are self centering, offer high torques 264 to 37000 Nm and are available in bores from 18 to 180mm

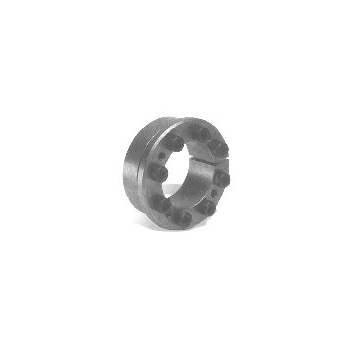

Drivelock 16 110x155 mm (DL16/110)
Drivelock 16 110x155 mm (DL16/110)
| Part No. | 7930-302 |
| Code | DL16/110 |
| d (h8) (mm) | 110 |
| D (mm) | 155 |
| D1 (mm) | 164 |
| M (mm) | M12 |
| L (mm) | 56 |
| B (mm) | 44 |
| A (mm) | 32 |
| Ts (Nm) | 145 |
| T (Nm) | 11030 |
| F (kN) | 201 |
| p N/mm2 | 142 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
