Drivelock® 13 Bushes are self centering, offer high torques 350 to 46900 Nm and are available in bores from 18 to 180mm

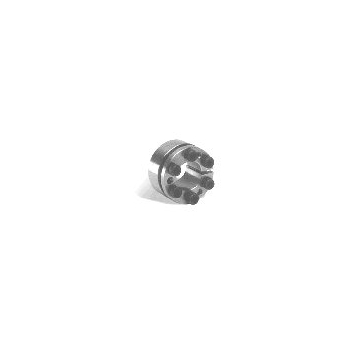

Drivelock 13 32x60mm (DL13/32)
Drivelock 13 32x60mm (DL13/32)
| Part No. | 7930-112 |
| Code | DL13/32 |
| d (h8) (mm) | 32 |
| D (mm) | 60 |
| M (screws)(mm) | M6 |
| L (mm) | 34 |
| B (mm) | 28 |
| Ts (Nm) | 14 |
| T(Nm) | 950 |
| F (kN) | 60 |
| p (N/mm2) | 150 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
