These sprockets are designed for running two simplex chains typically 1 sprocket driving two separate sprockets or roller to roller drives in conveyor systems. Available in sizes from 06B to 16B, manufactured in steel EN8, 080M40/080M46, C45.

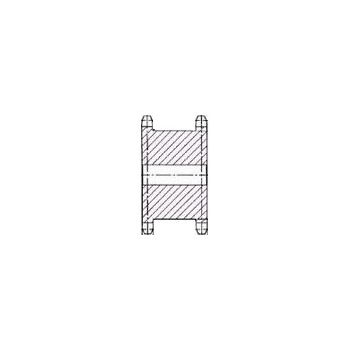

12B 17T Double Simplex Sprocket (6DS17)
12B 17T Double Simplex Sprocket (6DS17)
Part No. | 7825-003 |
Code | 6DS17 |
Type | 3/4 x 7/16 12 B-1 |
No teeth | 17 |
Outside dia. de | 111.2 |
Pitch dia. dp | 103.7 |
d* | 20 |
A | 34 |
B h14 | 11.1 |
C max. | 83 |
L | 45 |
r | 1 |
Every effort is taken to ensure the accuracy of the table data
Design variations and errors although rare may occur
