Delrin Mitre Gears



  • Standard tolerances, unless otherwise stated ±0.25 mm
  • Shaft axis to intersect within ±0.025mm
  • Angular accuracy between shafts ±5mins
  • Mounting distance tolerance ±0.05mm
  • Bore tolerance H8
  • Max. recommended working temperature 90°C
  • 20° pressure angle
  • Supplied in pairs
  • All dimensions in mm
  • Moulded DELRIN® 500 to gear quality AGMA 7

All dimensions subject to change. If a dimension is critical to your application please contact us.

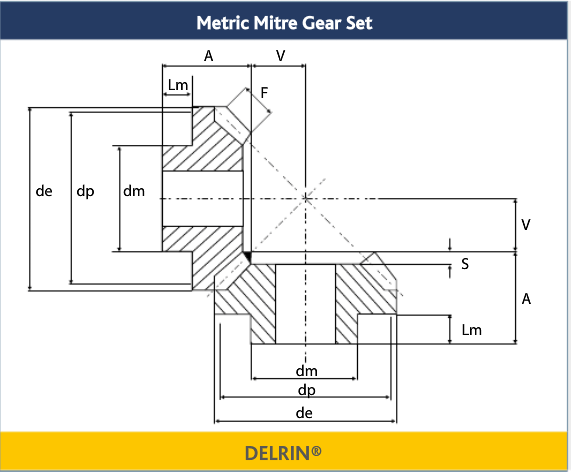

Part No. Code Pitch Module No teeth Bore dp (mm) de (mm) F (mm) A + V (mm) dm (mm) Lm (mm) S (mm) A (mm)
7708-101 DBM05/20 0.5 20 3 10 10.71 2.5 11 8 4 0.97 7.97
7708-102 DBM08/20 0.8 20 5 16 17.13 3.5 16 12 5 0.8 10.83
7708-103 DBM10/20 1 20 6 20 21.41 4.5 21 16 7 1.62 14.62
7708-104 DBM15/20 1.5 20 8 30 32.12 7 30 20 10 1.6 20.59
