Delrin Bevel Gears



  • Standard tolerances, unless otherwise stated ±0.25 mm
  • Shaft axis to intersect within ±0.025mm
  • Angular accuracy between shafts ±5mins
  • Mounting distance tolerance ±0.05mm
  • Bore tolerance -0.02 / -0.04mm
  • Max. recommended working temperature 90°C
  • 20° pressure angle
  • Supplied in pairs
  • All dimensions in mm
  • Moulded DELRIN® 500 to gear quality AGMA 7

All dimensions subject to change, if a dimension is critical to your application, please contact us for confirmation.

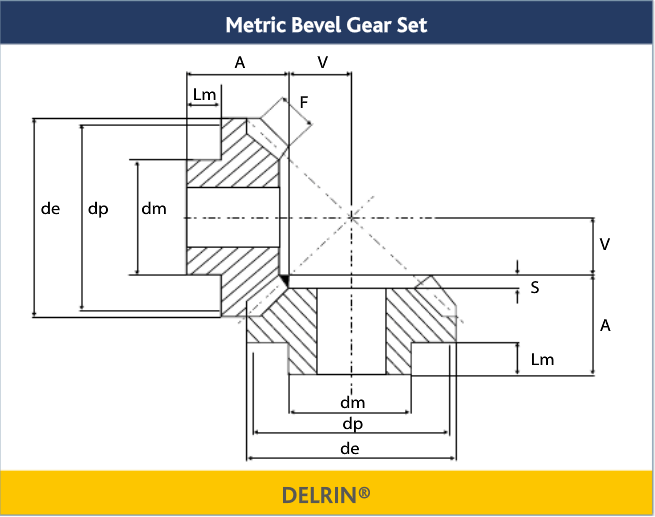

Part No. Code Pitch module No. teeth Bore dp (mm) de(mm) F(mm) A+V (mm) dm (mm) Lm(mm) S (mm) A(mm)
7707-101 DRB05/2 0.5 40 4 20 20.29 2.5 12 12 4 1.33 8.33
0.5 20 3 10 11.2 2.5 16 8 4 0 8.46
7707-102 DRB08/2 0.8 40 5 32 32.47 3.5 18 15 6 1.9 11.91
0.8 20 4 16 17.92 3.5 24 12 5 0 11.5
7707-103 DRB10/2 1 40 6 40 40.59 4.5 22 18 7 2.45 14.45
1 20 5 20 22.4 4.5 30 15 7 0 14.49
£4.10 incl VAT (£3.42 exc. tax)
7707-101
Delrin Bevel Gear 0.5 40T/20T. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£5.09 incl VAT (£4.24 exc. tax)
7707-102
Delrin Bevel Gear 0.8 40T/20T. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list

£6.96 incl VAT (£5.80 exc. tax)
7707-103
Delrin Bevel Gear 1.0 40T/20T. For dimensions and product description, click button below. We source our special order products from the largest... read more
Usually dispatched in 2-5 working days
+
Add to wish list
